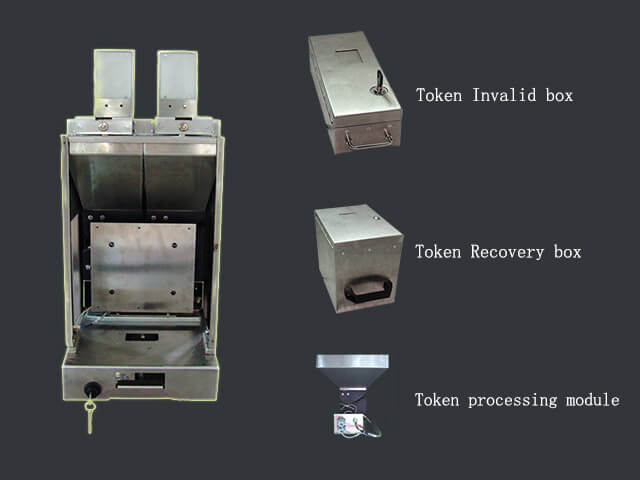

Token module
Core componentmodule using in the ticket vending machine and the ticket checking machine.
Technical specifications
Technical specifications
Brand: M-TDU-4000
Power interface: 800mA, DC+12V
Communication interface: three wire RS232115200bps
Ballot box: 2 box, 1000 / box, electronic ID, with 1 safety lock
Invalid box: 1 box, 200 / box, no electronic ID, with 1 safety lock
Recovery box: 1 cases, 2500 / box, electronic ID, with 1 lock security
Single ticket recovery rate: less than 0.6 seconds / Per Ticket
The whole moduledrawing speed: less than 2 seconds / Per Ticket
Function
1 support offering two one-way tickets selling
2 different buffer read and write
3 single ticket drawing
4 Multiple ticket drawing
5 Sorting and recycling
